Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing
Informazioni di base
Luogo di origine: Shanghai, Cina
Marca: DIKAI
Certificazione: CE; ISO 9001
Quantità di ordine minimo: 1
Prezzo: $400-500
Miglior prezzo Contattaci
Voltaggio: CA220+10V,50/60Hz Energia: 130W, fusibile 2A
Velocità di stampa: massimo 300 PPM, 35 metri/minuto Area di stampa: massimo 13 righe, 20 caratteri/riga
Tipo dimensioni: 3 mm, 3,5 mm o come richiesto Lunghezza del sacchetto: ≥38 mm(stampante 4 pagine su 1) ≥75 mm(stampante 2 pagine su 1)
Rotolo di inchiostro: 36*32/35/40mm Indice della stampa: MFG/ data di scadenza, numero di lotto, numero di serie, ecc.
Dimensioni della stampante: 120*100*170mm Peso della stampante: 2 kg
Peso del controller: 1kg Frequenza di stampa: ≤300 stampe/min
Velocità di superficie: 35 metri/minuto Linee di stampa: massimo 13 righe
Componenti principali: Tavola PC
Evidenziare:

20 Characters per Line Hot Ink Roll Coder

,

2A Fuse Date Code Printer

,

1 Year Warranty Expiry Date Printer

DIKAI DK-1100B Hot Ink Roll Coder
Product Description
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 0 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 1

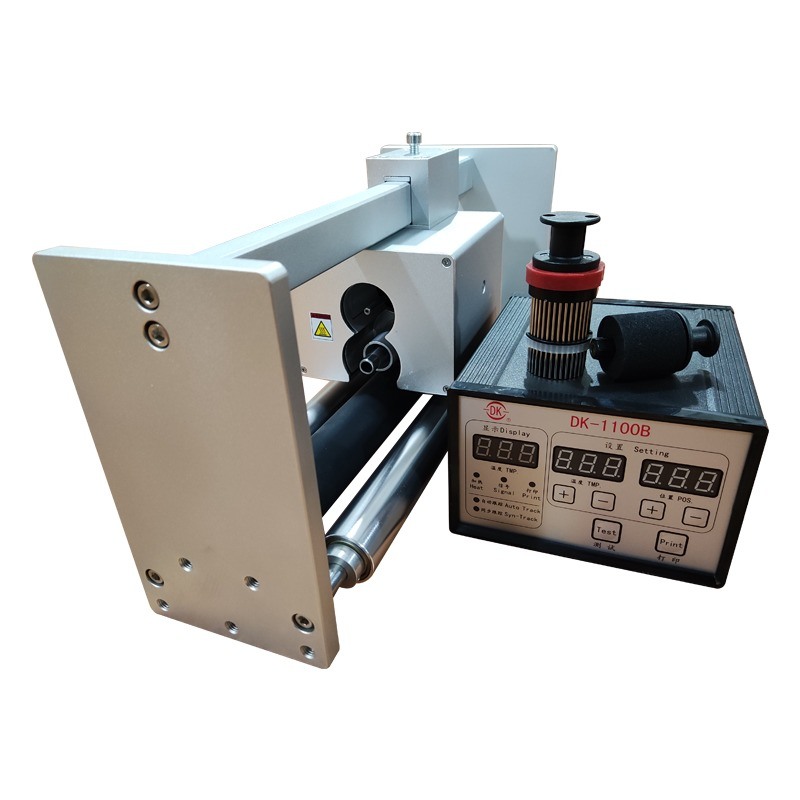

The DK-1100B Ink Roll Coder is a continuous coding machine designed for integration with flow packers and continuous packing machines. It prints MFG/EXP date, lot number, and serial number with a maximum speed of 300 prints/minute and surface speed up to 35 meters/minute. Widely used in food, daily chemicals, tissue, and pharmaceutical industries.
Since 2001, cumulative sales have reached 100,000 sets, serving over 4,000+ end users including Mondelez, Pepsico, and Yili Dairy. We cooperate with 200+ packing machine manufacturers in China and export to 100+ countries through our global distribution network.
Main Components
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 2 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 3

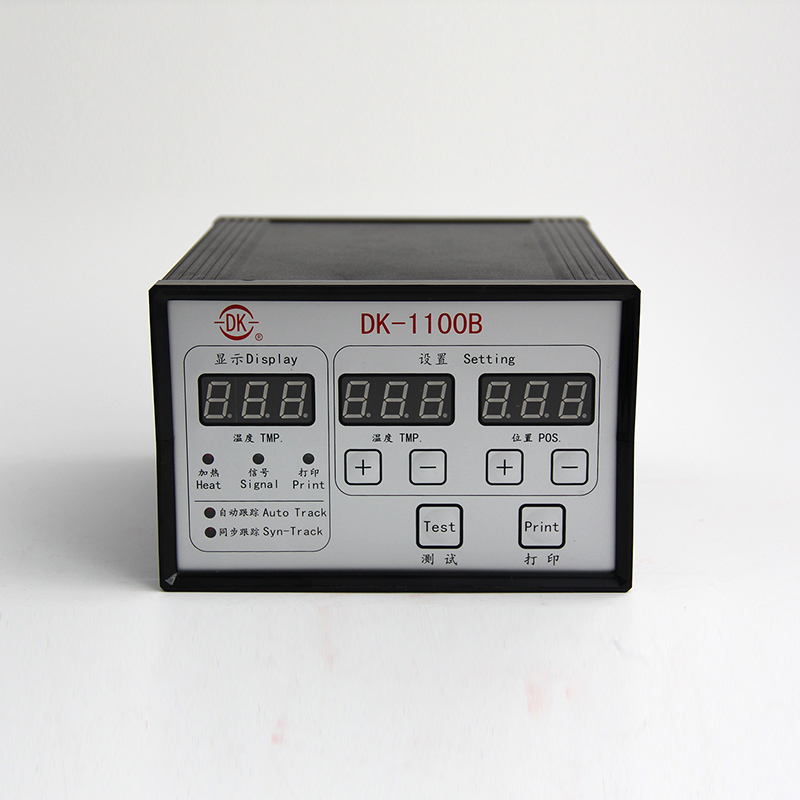

Controller
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 4 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 5

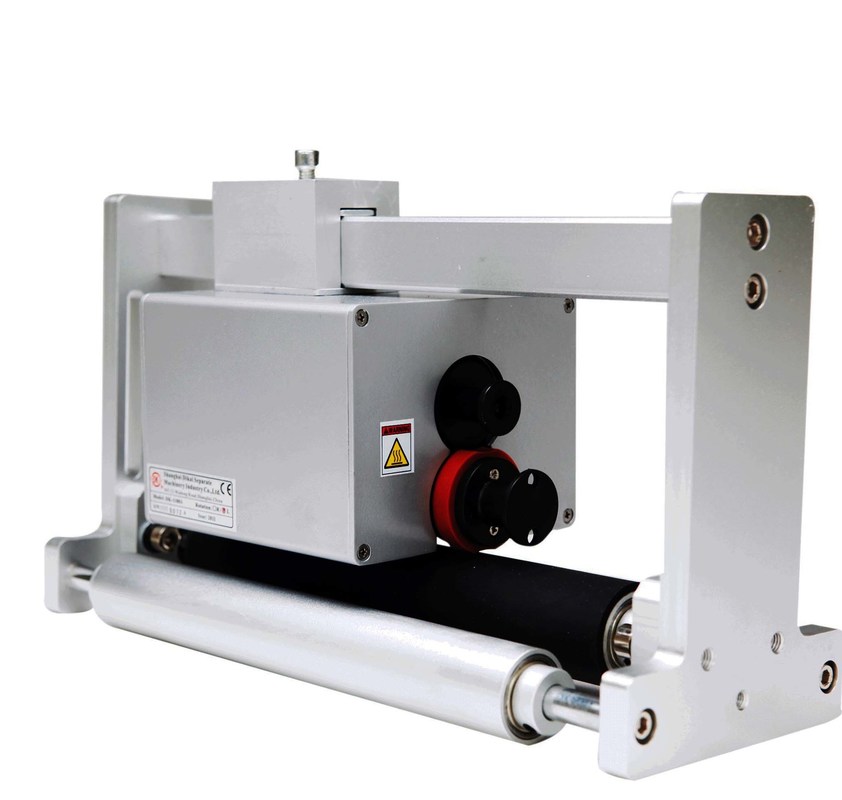

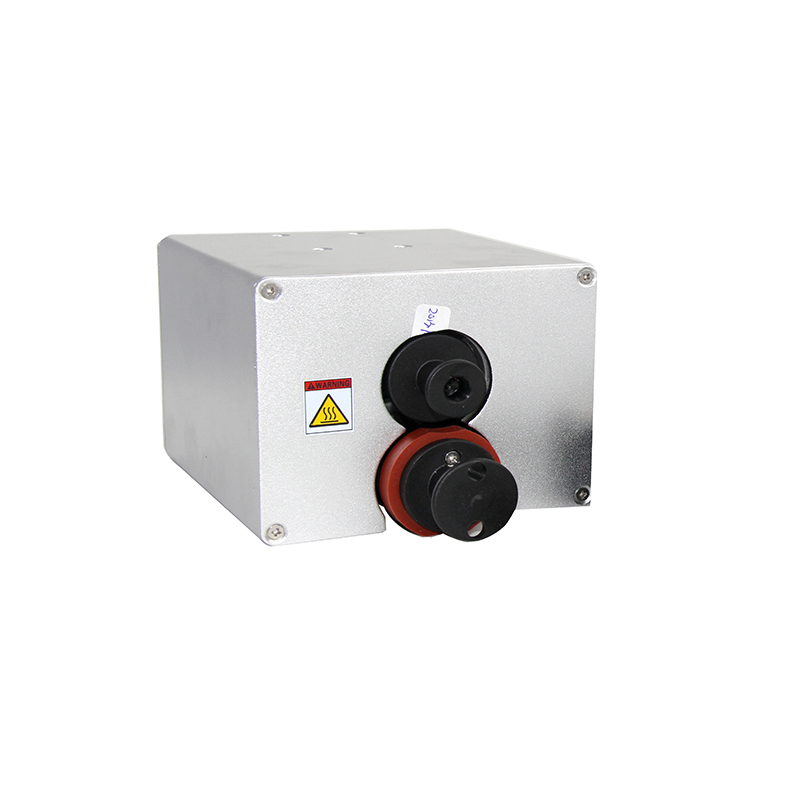

Printer Unit
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 6 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 7
Bracket
Specification
Product name DK-1100B Ink Roll Coder
Print Area ≤13 lines, max 20 characters/line
Type Sizes Standard 3.0T, 2.5*7T, 3.5R (or customized size)
Pouch Length ≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency ≤300 prints/min
Ink Roll Required 36*32mm/36*35mm/36*40mm
Electricity AC220+10V, 50/60Hz
Power 130W, 2A fuse
Print Speed 35 meters/minute
Print Contents MFG/EXP date, lot number, serial number, etc.
Note: The prices shown on ALIBABA are not final prices. Please consult us for proper solutions.
Application
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 8 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 9
  • Max Print Speed: 300 PPM
  • Surface Speed: 35 meters/minute
  • Print Info: date, lot number, shifts
  • Print Lines: max 13 lines
  • Industry: Food, daily chemicals
Print Results
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 10 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 11 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 12
Packaging & Shipping
  • Standard Export Cartons with soft protection inside
  • Suitable for international sea, air, fast courier shipping
  • Package Size: 77*33*27cm (with 500mm bracket)
  • Gross Weight: 9.5kg
  • Regular Lead Time: 1-2 weeks after order confirmation & payment
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 13 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 14
After Sales Service
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 15
Technical Supports
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
FAQ
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's unique needs in coding and marking.
2. What's the regular lead time for Dikai Products?
Lead time is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai Warehouse.
4. How about your after-sales service?
For countries with distributors, we rely on them for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
