DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty

AC100-AC230V Hot Ink Roll Coder

120 X 100 X 170 mm Ink Roll Coder

1 Year Warranty Expiry Date Printer

Luogo di origine:

Shanghai, Cina

Marca:

Dikai

Contattici

Richieda una citazione

DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty

Dettagli del prodotto

Voltaggio:

AC100-AC230V, 50/60 Hz

Dimensioni:

120X100X170mm

Peso:

4 kg

Velocità massima della stampa:

300 stampe/minuto

Area di stampa:

massimo 13 righe, 20 caratteri/riga

Stampa Peso della testa:

2,0 kg

Peso della casella di controllo:

1,0 kg

Dimensioni della testina di stampa:

120 mm*100 mm*170 mm (L*L*A)

Dimensioni della casella di controllo:

180 mm*180 mm*102 mm (L*L*A)

Energia:

130W, fusibile 2A

Intervallo di temperatura:

4°c-40°c

Velocità di superficie:

fino a 35 metri/minuto

Dimensione:

Tipo T 1,5 mm, 2,0 mm, 2,5 mm, 3,0 mm*3,5 mm; Tipo R 3,5 mm*3,5 mm, 4,5 mm, 5,5 mm

Dimensione del rotolo di inchiostro:

¢36*40mm

Tipo di testa di stampa:

Destra (in senso orario), Sinistra (in senso antiorario)

Evidenziare:

AC100-AC230V Hot Ink Roll Coder

120 X 100 X 170 mm Ink Roll Coder

1 Year Warranty Expiry Date Printer

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prezzo

$450-600

Prodotti correlati

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Ottieni il miglior prezzo

Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

Ottieni il miglior prezzo

DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

Ottieni il miglior prezzo

Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing

Ottieni il miglior prezzo

Contattici

info@dikaicoding.net

86-21-51086700

Contatto ora

Descrizione di prodotto

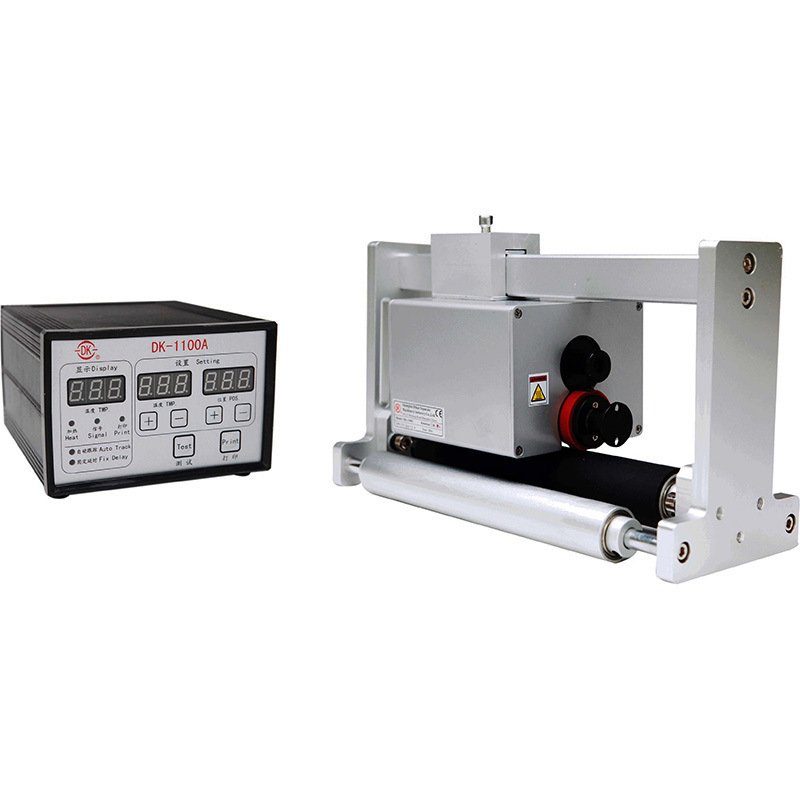

DIKAI DK-1100B Ink Roll Coder

Product Overview

The DIKAI DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines. This high-performance printer features:

Maximum printing speed of 300 PPM
Print area supporting up to 13 lines for MFG/EXP dates, lot numbers, and other essential information
Ideal for flexible packing films in food, daily chemicals, tissue, rice, seed, and related industries
Proven reliability with over 100,000 units sold since 2011
Nearly maintenance-free operation for significant cost savings

Key Features

Stable printing performance
Minimal mechanism consumption
Compact footprint
Simple installation process
Easy operation

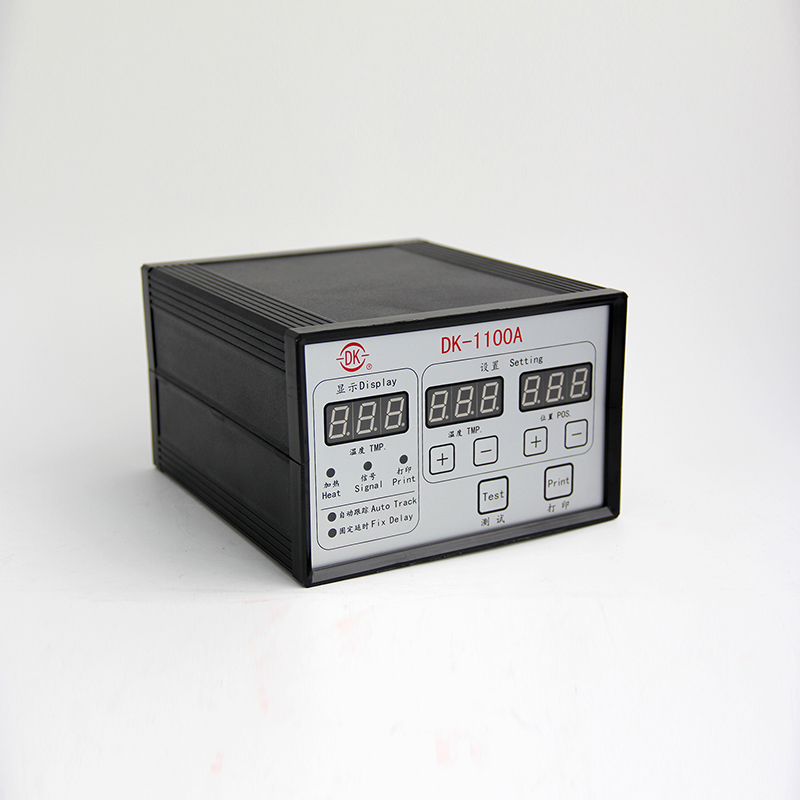

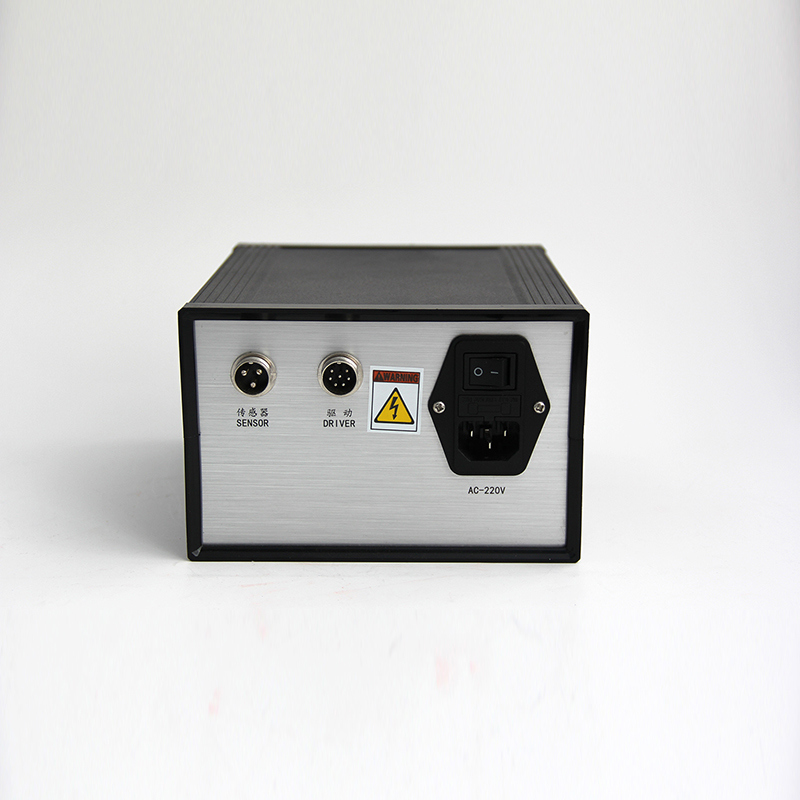

Controller Unit

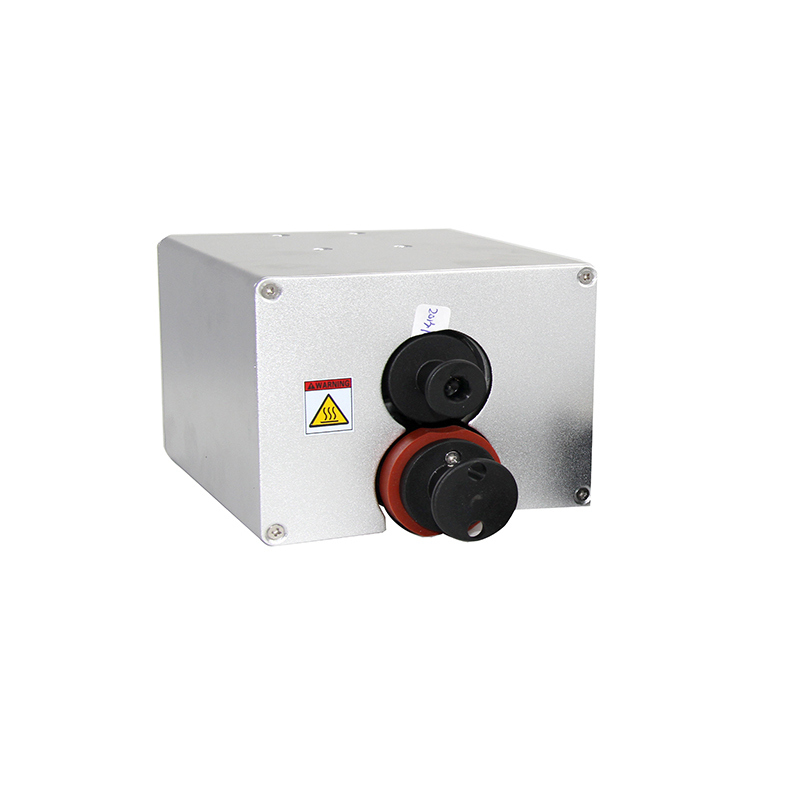

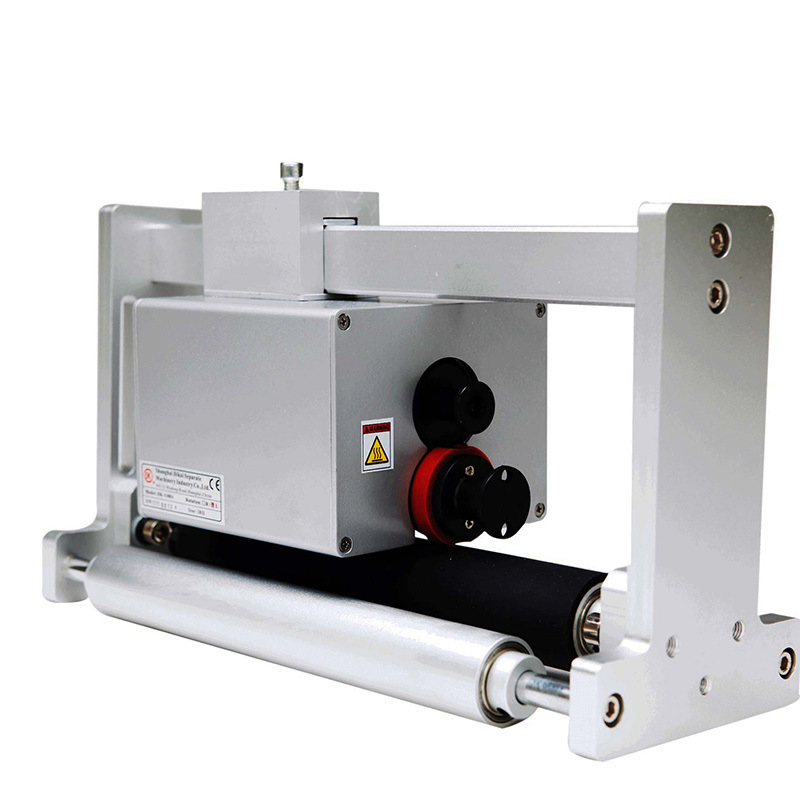

Print Unit

Technical Specifications

Print Area	Axial=40mm; Radial=45.5mm
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Lines	T-type (Axial) up to 13 lines, max 20 characters/line R-type (Radial) up to 10 lines, max 13 characters/line
Font Size	T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm3.5mm R-type 3.5mm3.5mm, 4.5mm, 5.5mm
Print Speed	Up to 300 prints/minute
Surface Speed	Up to 35 meters/minute
Weight	Print Head 2.0kg Control box 1.0kg
Dimensions	Print Head 120mm100mm170mm (LWH) Control Box 180mm180mm102mm (LWH)
Ink Roll Required	¢36*40mm
Electrical	AC100-230V, 50/60Hz
Power	130W, 2A Fuse
Temperature Range	4°C-40°C

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions tailored to your needs.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

After Sales Service

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

Frequently Asked Questions

1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
