DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20

Print Speed max 600PPM Hot Ink Roll Coder

Print Area T-Type:≤13lines

max20 Ink Roll Coding Machine

Print Area R-Type:≤10lines

max13 Ink Roller

Luogo di origine:

Shanghai, Cina

Marca:

DIKAI

Certificazione:

CE; ISO 9001

Contattici

Richieda una citazione

DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20

Dettagli del prodotto

Voltaggio:

CA220+10V,50/60Hz

Energia:

Fusibile da 140 W, 2 A

Velocità di stampa:

massimo 600 PPM, 50 metri/minuto

Area di stampa:

T: ≤ 13 linee, max 20; R: ≤10 linee, max13

Tipo dimensioni:

Tipo T:2.0T,2.5T,3.0T,2.5*7T; Tipo R:3.5R,4.5R,5.5R

Lunghezza del sacchetto:

≥38mm(stampante 4-up); ≥75 mm (stampante 2-up)

Dimensione del rotolo di inchiostro:

36*32mm, 36*35mm, 36*40mm

Frequenza di stampa:

≤300Times/min

Dimensioni:

Unità stampante: 94 mm*100 mm*166 mm

Peso:

Unità di stampa: 4 kg; Scatola del controller: 2 kg

Indice della stampa:

Data di MFG/EXP, numero di lotto, numero di serie

Componenti principali:

Tavola PC

Grado automatico:

Automatico

Tipo guidato:

Elettrico

Materiale di imballaggio:

Carta

Evidenziare:

Print Speed max 600PPM Hot Ink Roll Coder

Print Area T-Type:≤13lines

max20 Ink Roll Coding Machine

Print Area R-Type:≤10lines

max13 Ink Roller

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prezzo

$600-800

Prodotti correlati

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Ottieni il miglior prezzo

Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

Ottieni il miglior prezzo

DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

Ottieni il miglior prezzo

Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing

Ottieni il miglior prezzo

Contattici

info@dikaicoding.net

86-21-51086700

Contatto ora

Descrizione di prodotto

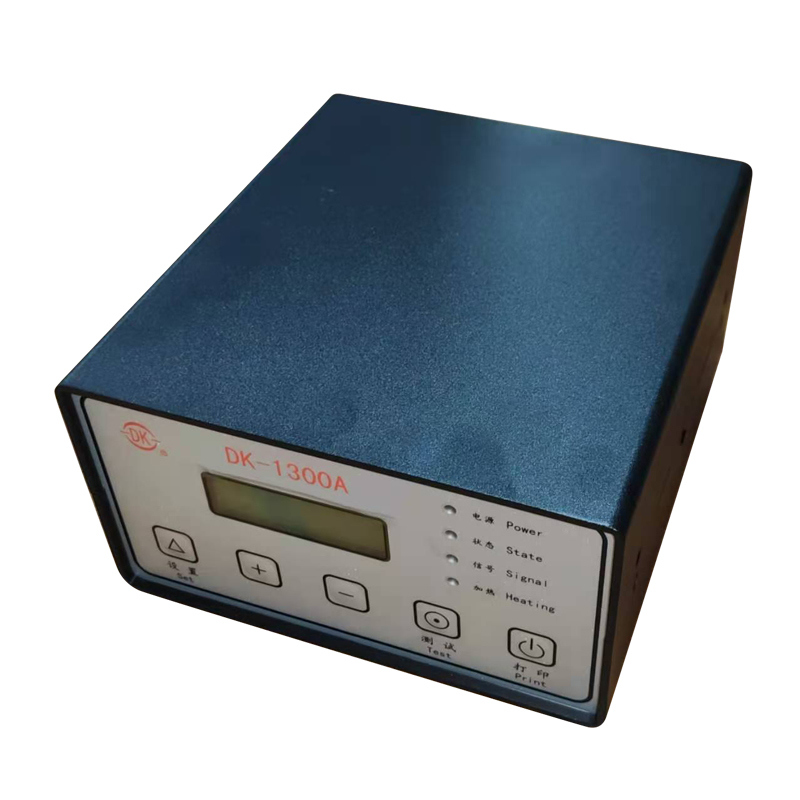

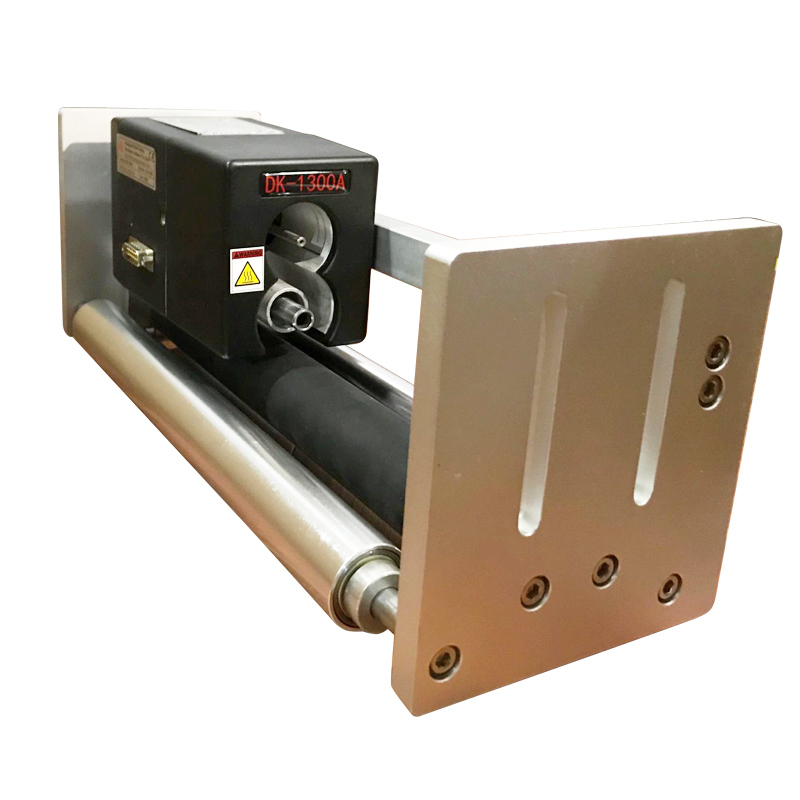

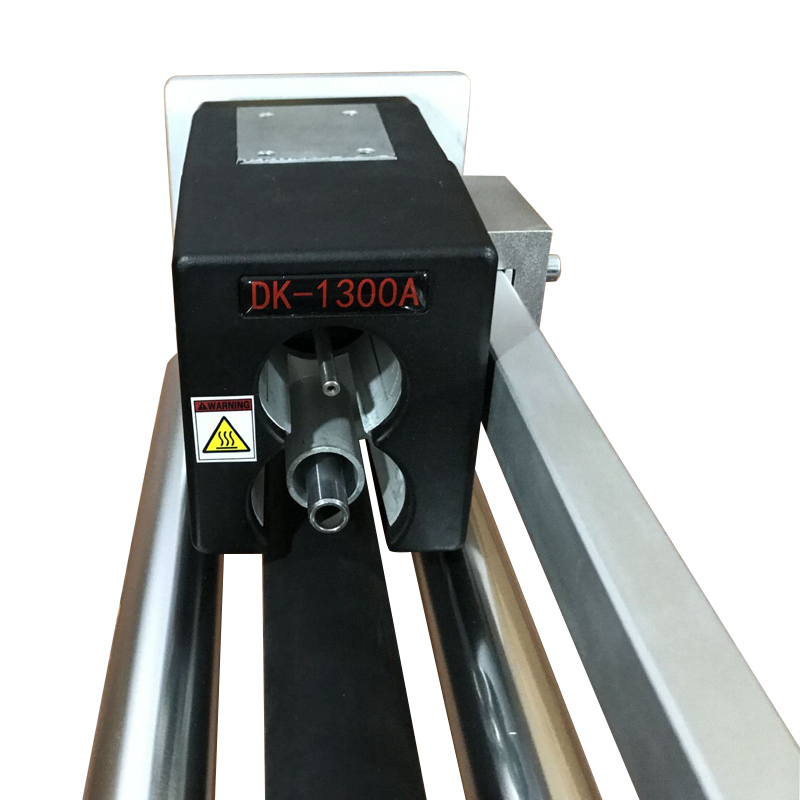

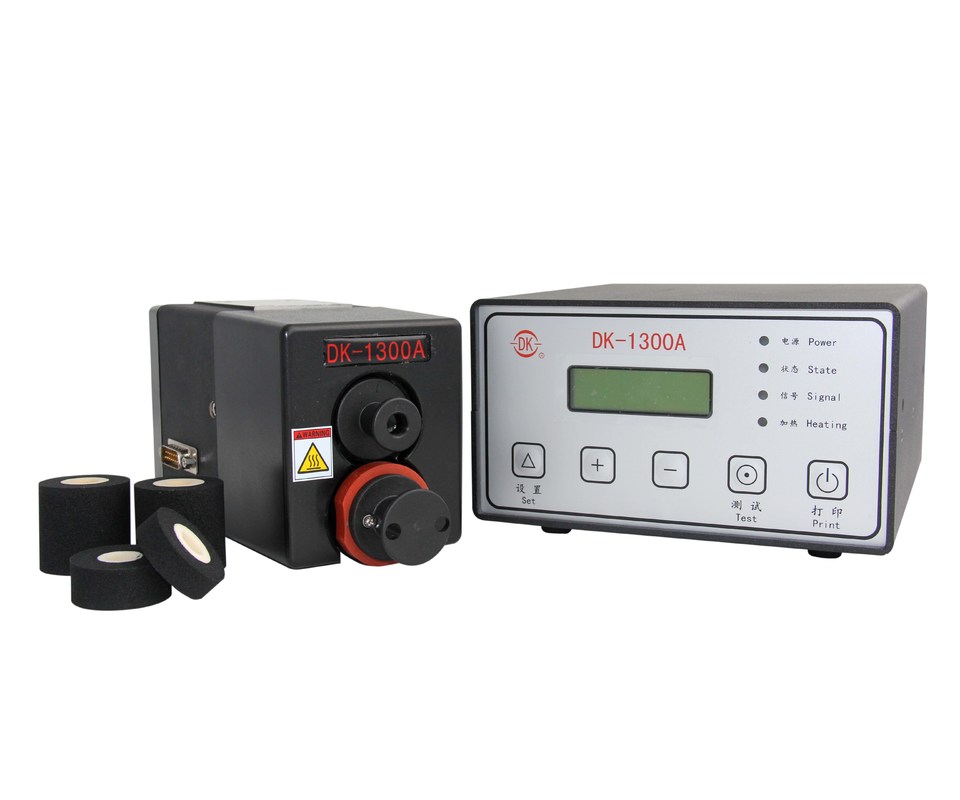

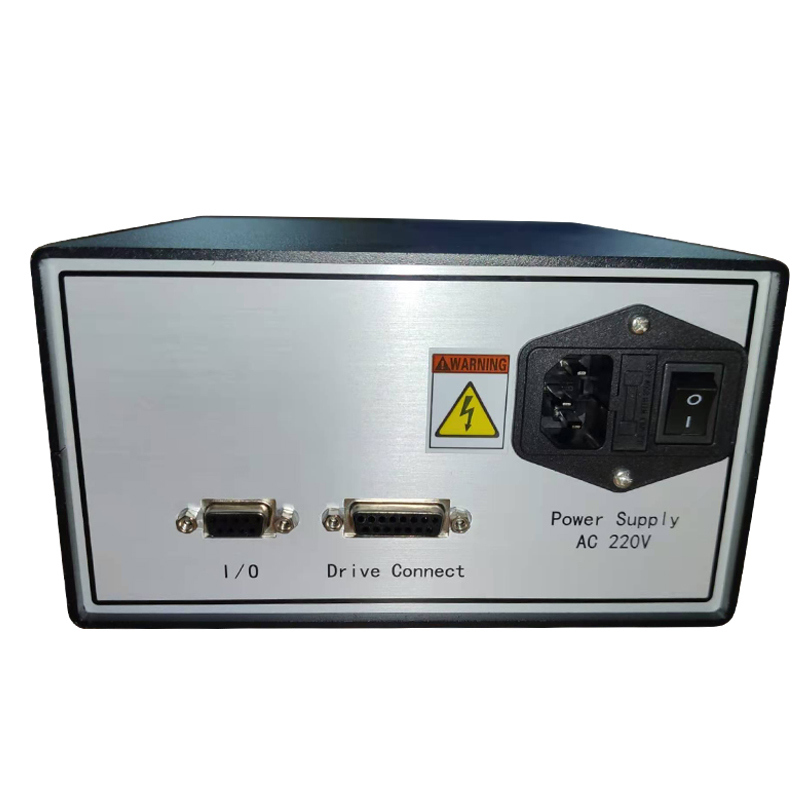

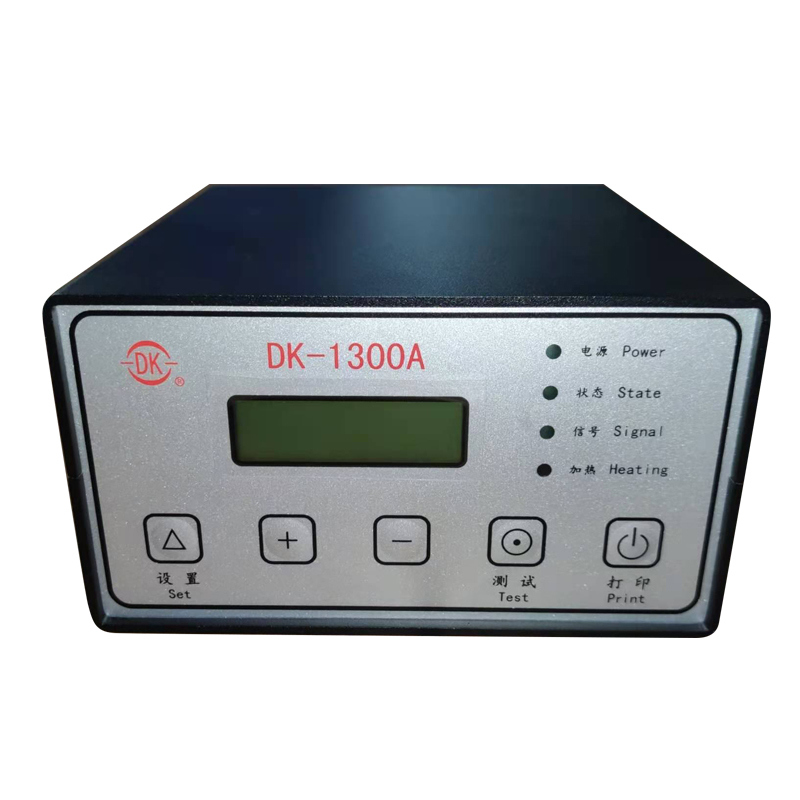

DIKAI Dk-1300A High Speed Ink Roll Coder Hot Ink Roll Coding Machine Ink Roller

Product Overview

The DK-1300A High Speed Ink Roll Coder is an electronic continuous motion coder designed for installation on horizontal flow wrappers to print dates, lot numbers, and other information on plastic film. Widely used in food, pharmaceutical, and tissue industries, this model is installed on over 80% of Chinese horizontal flow wrappers. Leading packaging machine manufacturers like Hualian, Soontrue, Modern, and Soonforward have been our long-term partners.

Key Features

High-speed operation
Easy installation
Stable printing performance
Compact design

Technical Specifications

Product Name	DK-1300A High Speed Ink Roll Coder
Print Area	T-Type (Axial): ≤13 lines, max 20 characters per line R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes	T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T R-Type: 3.5R, 4.5R, 5.5R
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 times/min
Ink Roll Required	3632mm, 3635mm, 36*40mm
Electricity	AC220+10V, 50/60Hz
Power	140W, 2A fuse
Print Speed	Max 900PPM, 60 meters/minute
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

After Sales Service

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

Frequently Asked Questions

1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's different needs in coding and marking.

2. What's the regular lead time for Dikai Products?

Lead time for all Dikai goods is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
