DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty

13 Lines Print Area Hot Ink Roll Coder

AC220V Ink Roll Coder

1 Year Warranty Date Coding Machine

Luogo di origine:

Shanghai, Cina

Marca:

DIKAI

Certificazione:

CE; ISO 9001

Contattici

Richieda una citazione

DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty

Dettagli del prodotto

Voltaggio:

CA220+10V,50/60Hz

Energia:

Fusibile da 130 W, 2 A

Velocità di stampa:

massimo 300 PPM, 35 metri/minuto

Area di stampa:

Tipo T: ≤13 righe, massimo 20 caratteri per riga; Tipo R: ≤10 righe, massimo 13 caratteri per riga

Tipo dimensioni:

Tipo T: 2.0T, 2.5T, 3.0T, 2.5*7T; Tipo R: 3.5R, 4.5R, 5.5R

Lunghezza del sacchetto:

≥38 mm (stampante 4 pagine su 1), ≥75 mm (stampante 2 pagine su 1)

Dimensione del rotolo di inchiostro:

36*32 mm, 36*35 mm, 36*40 mm

Dimensioni:

Unità stampante: 120*100*170 mm

Peso:

Unità di stampa: 2 kg, scatola controller: 1 kg

Frequenza di stampa:

≤300 volte/min

Indice della stampa:

Data MFG/EXP, numero di lotto, numero di serie, ecc

Componenti principali:

Tavola PC

Tipo guidato:

Elettrico

Grado automatico:

Automatico

Materiale di imballaggio:

Carta

Evidenziare:

13 Lines Print Area Hot Ink Roll Coder

AC220V Ink Roll Coder

1 Year Warranty Date Coding Machine

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prezzo

US$450-600

Prodotti correlati

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Ottieni il miglior prezzo

Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

Ottieni il miglior prezzo

DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

Ottieni il miglior prezzo

Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing

Ottieni il miglior prezzo

Contattici

info@dikaicoding.net

86-21-51086700

Contatto ora

Descrizione di prodotto

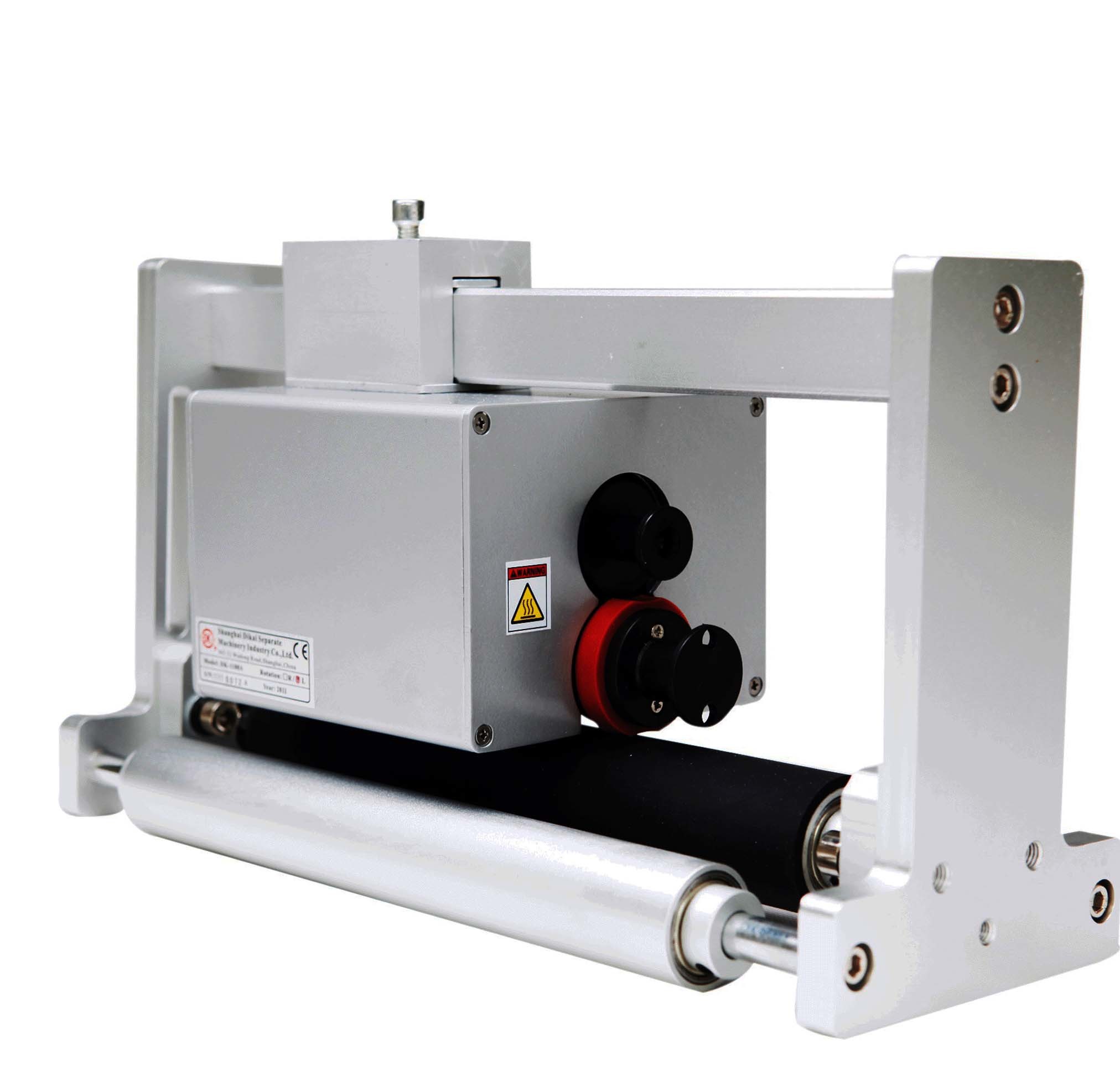

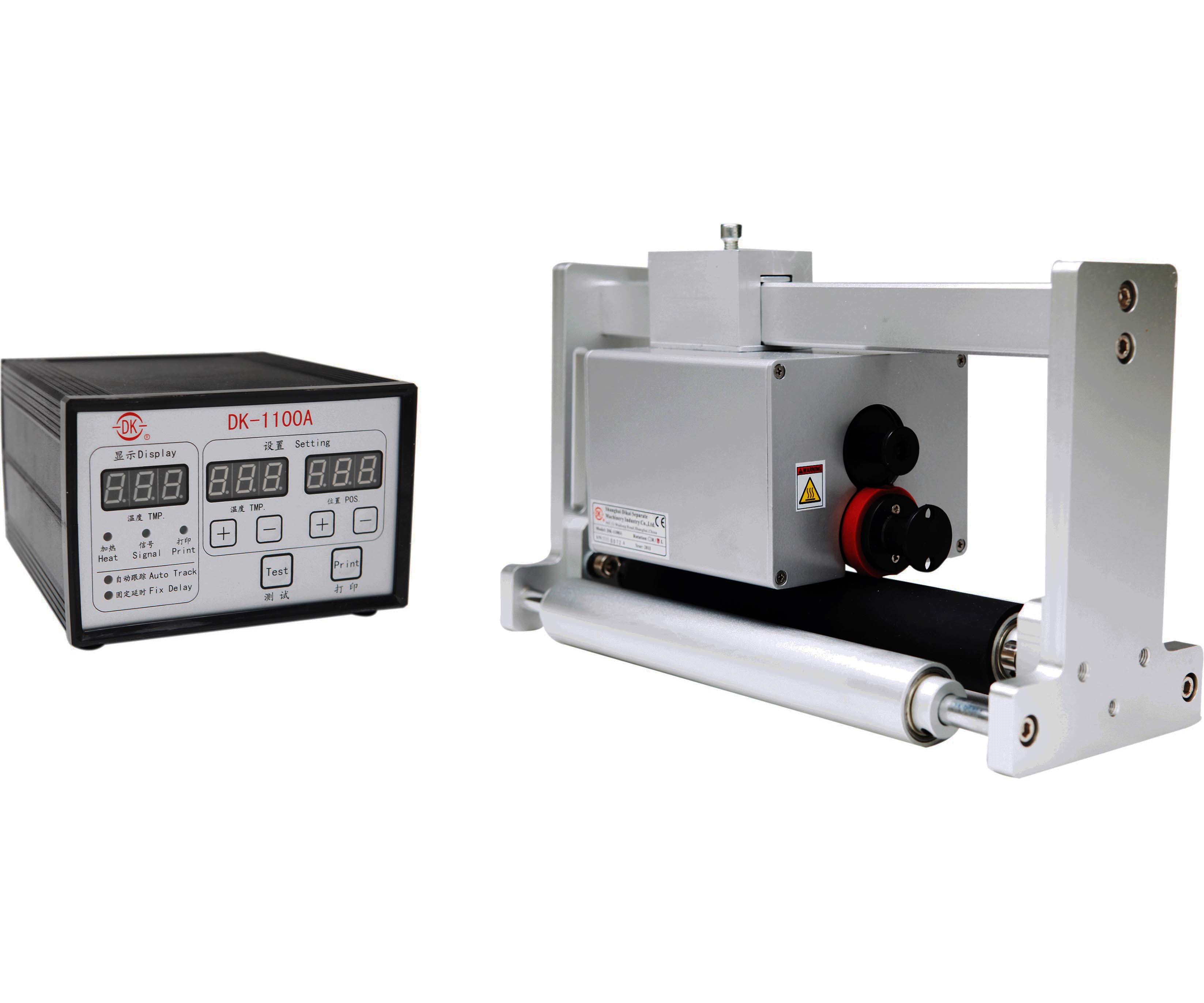

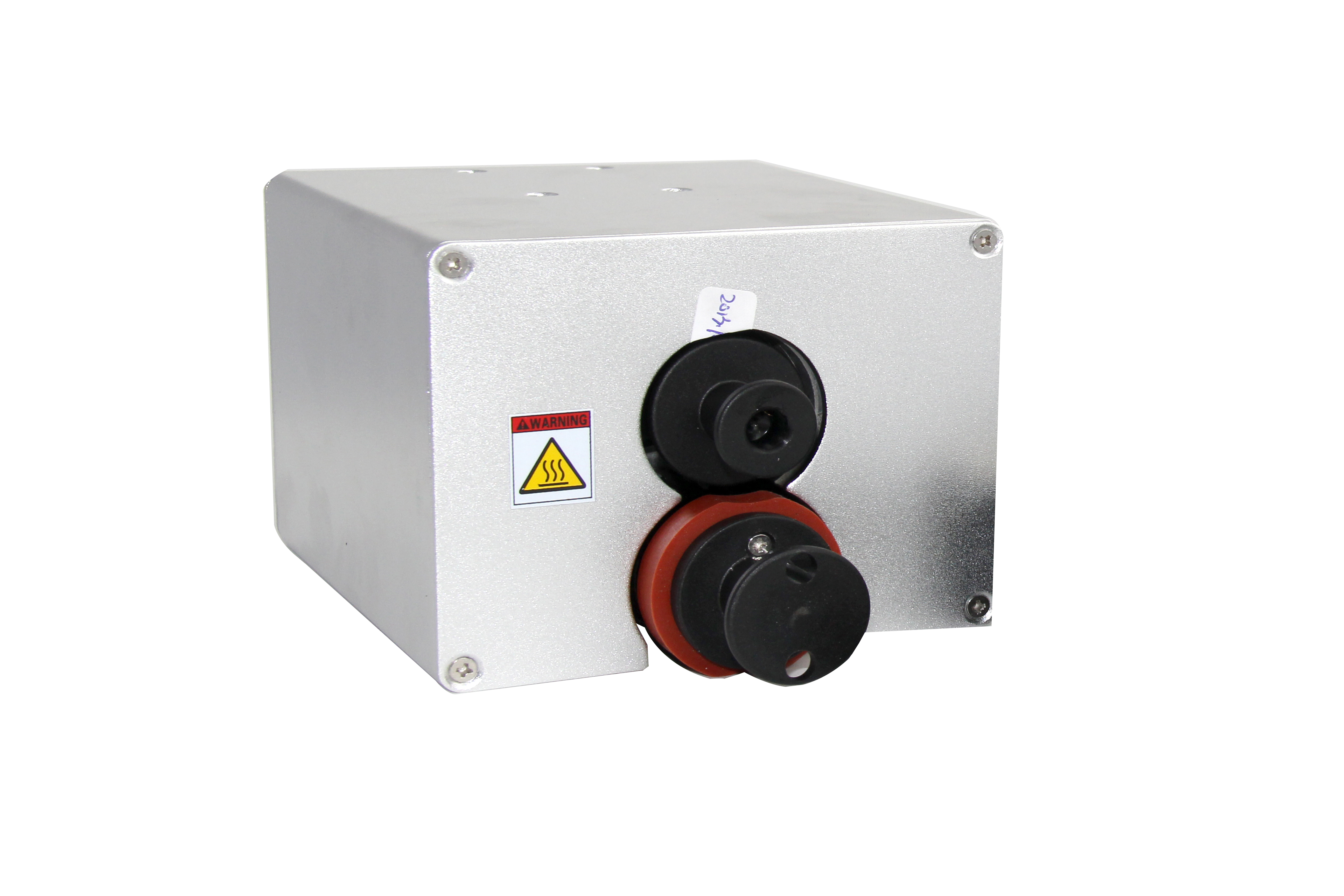

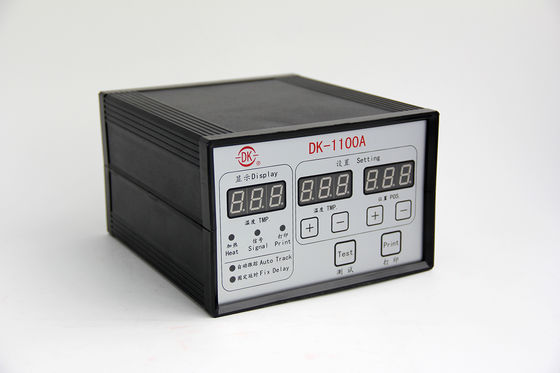

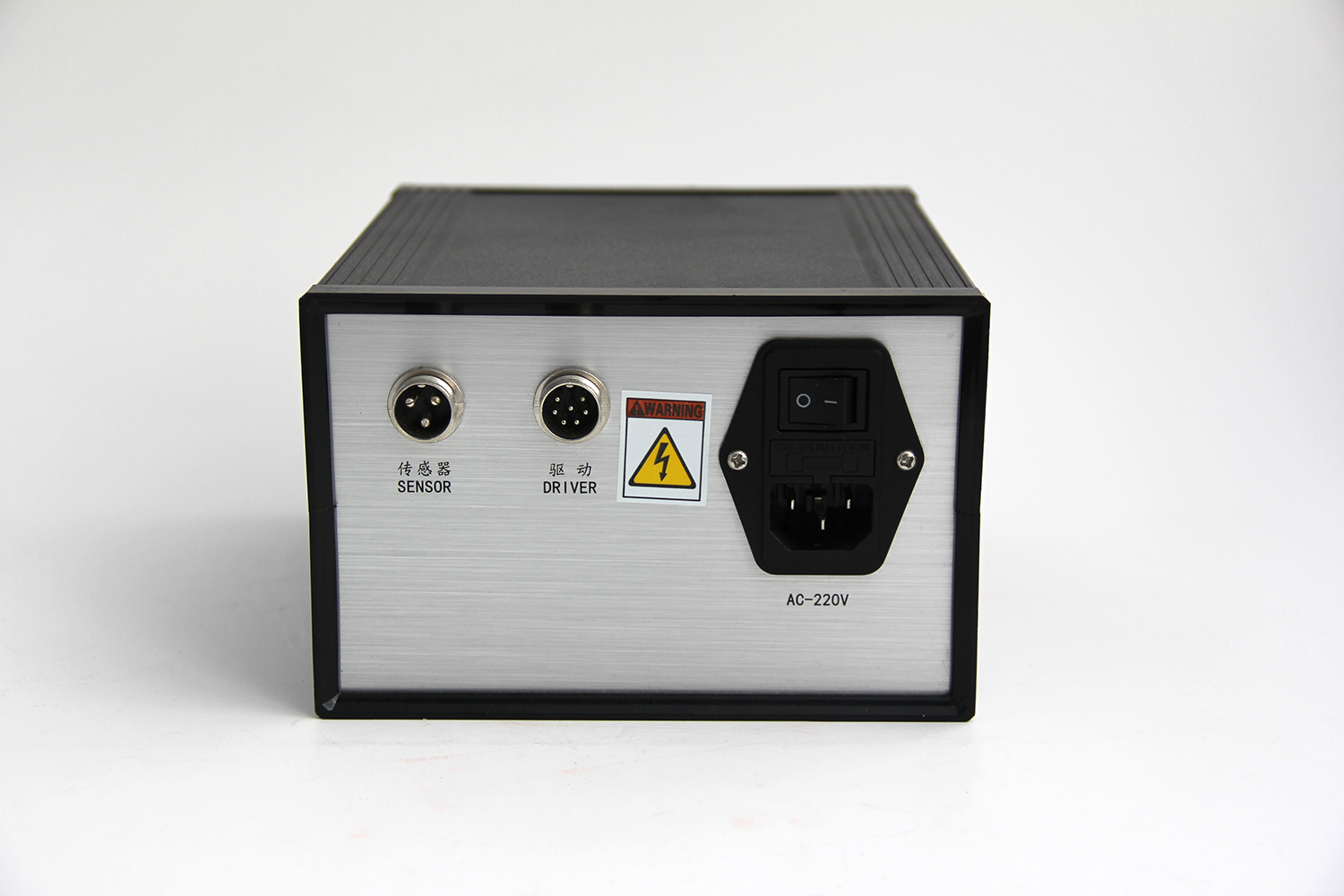

DIKAI Dk-1100A High Speed Date Coder Hot Ink Roll Coder

Product Overview

The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this reliable model has sold over 100,000 units since its 2011 launch, offering nearly maintenance-free operation for significant cost savings.

Key Features

Fast Speed - Maximum printing speed of 300 PPM
Stable Printing - Consistent high-quality output
Less Mechanism Consumption - Reduced maintenance requirements
Compact Size - Space-efficient design
Simple Installation and Operation - User-friendly setup

Product Images

Technical Specifications

Product Name	DK-1100A Ink Roll Coder
Print Area	T-Type (Axial): ≤13 lines, max 20 characters per line R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes	T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T R-Type: 3.5R, 4.5R, 5.5R
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 times/min

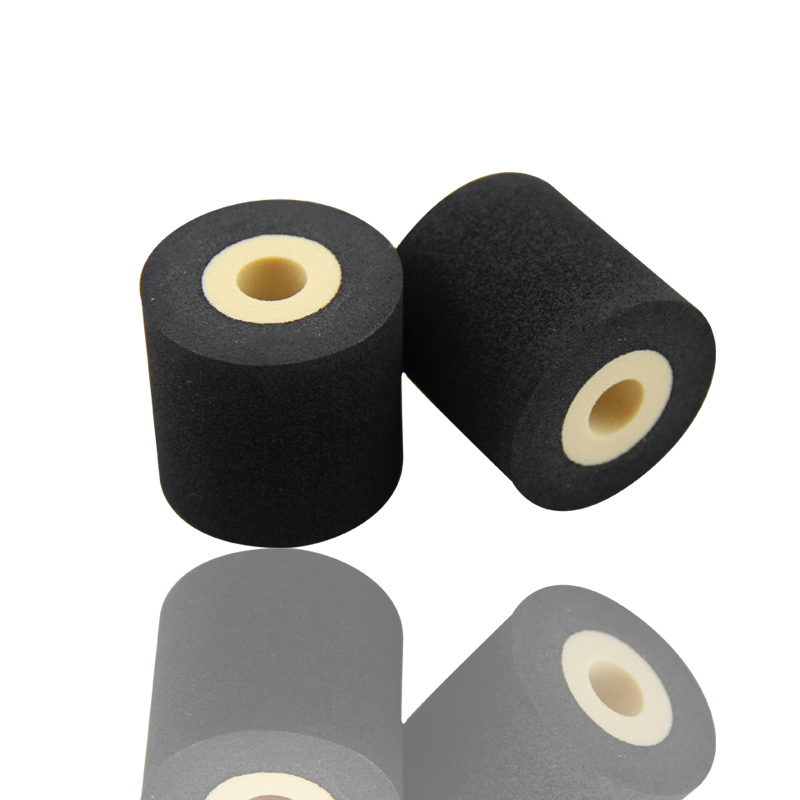

Ink Roll Required	3632mm, 3635mm, 36*40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Speed	Max 300PPM, 35 meters/minute
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: The prices shown on Alibaba are not final prices. Please consult us for customized solutions.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

After Sales Service

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

Frequently Asked Questions

1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

In countries with distributors, we rely on our local partners for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
