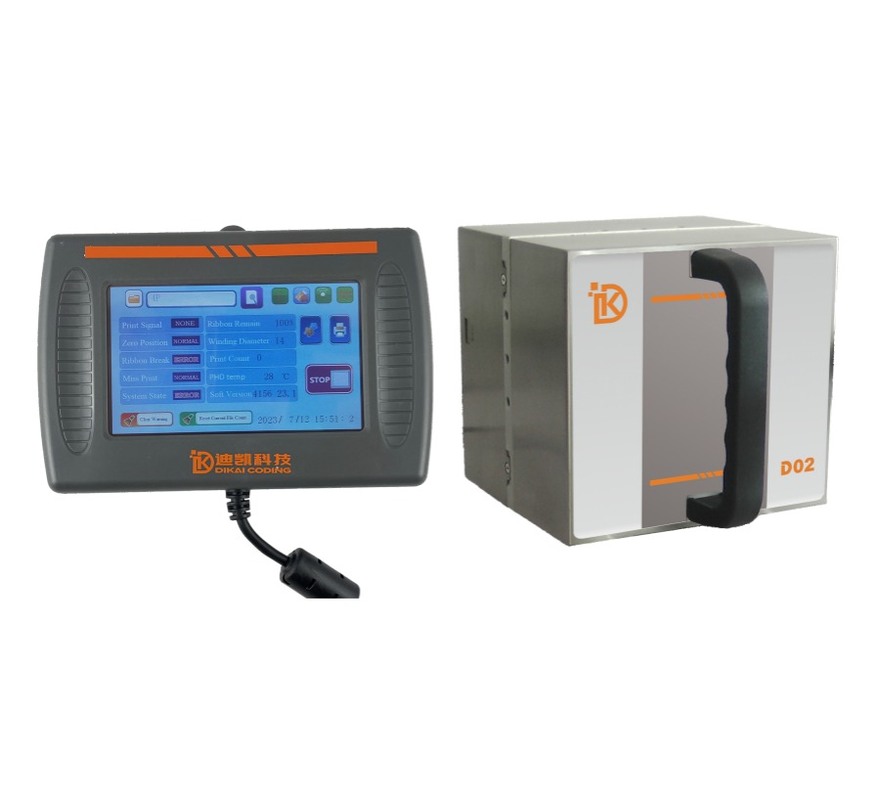

DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer

DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer
DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer
Informazioni di base
Luogo di origine: Shanghai, Cina
Marca: DIKAI
Quantità di ordine minimo: 1
Prezzo: $2,200-2,500
Miglior prezzo Contattaci
Voltaggio: AC 110-220V Testa di stampa: 24mm, 200 dpi (8dot/mm)
Velocità di stampa: fino alle 120pm Area di stampa: 24-40mm
Dimensione della stampante: 170*165*160mm Azionare la dimensione della maniglia: 170*25-115mm
Dimensione del nastro: Larghezza 25 mm, lunga 500 metri Peso: 5 kg
Energia: 120w Frequenza di stampa: fino alle 120pm
Temperatura operativa: 0-40 ℃ Umidità relativa: 10% ~ 95% (non condensante)
Stampa Peso della testa: 5 kg Azionare il peso della maniglia: 0,4 kg
Dimensioni dell'unità di stampa: 210mm*210mm*185mm
Evidenziare:

24mm Print Head Thermal Transfer Overprinter

,

200 DPI TTO Printer

,

120 PPM Date Code Printer

DIKAI D02 TTO Ribbon Thermal Transfer Printer for Food Industry
Product Overview

The D02 Thermal Transfer Overprinter was developed by DIKAI's own R&D team with 2 national patents. Designed for vertical packers, this industrial printer can be installed on intermittent package machines and labeling machines to print barcodes, QR codes, logos, images, variable data, tables, nutrition lists, and serial numbers on package films in various fonts.

Key Features
  • Compatible with both continuous & intermittent operation
  • 24mm Kyocera printhead with 200 DPI resolution
  • Prints real-time, variable date information
  • Low operational cost
  • User-friendly operation
DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 0 DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 1 DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 2 DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 3
Technical Specifications
Specification Details
Print Head 24mm, Kyocera; 200DPI
Print Area Intermittent: 24mm*40mm
Ribbon Size 25mm*500m
Print Frequency Intermittent: up to 120PPM
Power AC110~220V, 50/60Hz, 120W
Operation Temperature 0-40℃
Humidity 10%~95% (non-condensing)
Weight Print head: 5kg, Operate handle: 0.4kg
Dimensions Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm

Note: Prices shown are not final. Please consult us for customized solutions.

Installation & Operation
DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 4 DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 5
Printing Samples
DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 6 DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 7
Packaging & Shipping

1. Standard carton cases with protective sponge filling
2. Fumigation-free wooden cases suitable for sea and air transport
3. Customized packing available per customer requirements

DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 8 DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 9
After-Sales Support
  • R&D technical support
  • Operation manual guidance
  • 24-hour professional online support
  • Video tutorials
  • Possible on-site support
DIKAI D02 24mm Print Head 200 DPI 120 PPM Thermal Transfer Overprinter for Vertical Packer Date Code Printer 10
Frequently Asked Questions
1. Why choose DIKAI?

With 28 years of experience in developing, manufacturing and selling quality coding machines and consumables, we are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

3. What's the warranty period?

Standard warranty is 12 months from leaving our warehouse.

4. How about after-sales service?

We work with local distributors for support services and provide online technical assistance along with continuously updated video support materials.
