DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding

DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding
Informazioni di base
Luogo di origine: Shanghai, Cina
Marca: DIKAI
Certificazione: CE, ROHS, MSDS
Quantità di ordine minimo: 1
Prezzo: $3,200-3,500
Miglior prezzo Contattaci
Larghezza della testa di stampa: 53 mm Risoluzione di stampa: 300 dpi
Max Print Area: 53mm*150mm Velocità di stampa: 2-36 m/minuto
Voltaggio: CA 220V/50Hz 110V/60Hz Alimentazione elettrica: AC100-240V 50/60Hz
Fornitura d'aria: 6bar/90psi (max.) Dimensioni: 188*190*180mm
Peso: 16 kg Frequenza di stampa intermittente: Fino a 300 ppm
Frequenza di stampa Continuo: fino alle 30 ppm Consumo energetico: 150 W.
Temperatura operativa: 0-40 ℃ Umidità relativa: 10%~95%
Interfaccia: USB; RS232
Evidenziare:

Automatic Thermal Transfer Overprinter

,

53mm Printhead TTO Printer

,

300 DPI Coding Machine

DIKAI D05S TTO PRINTER

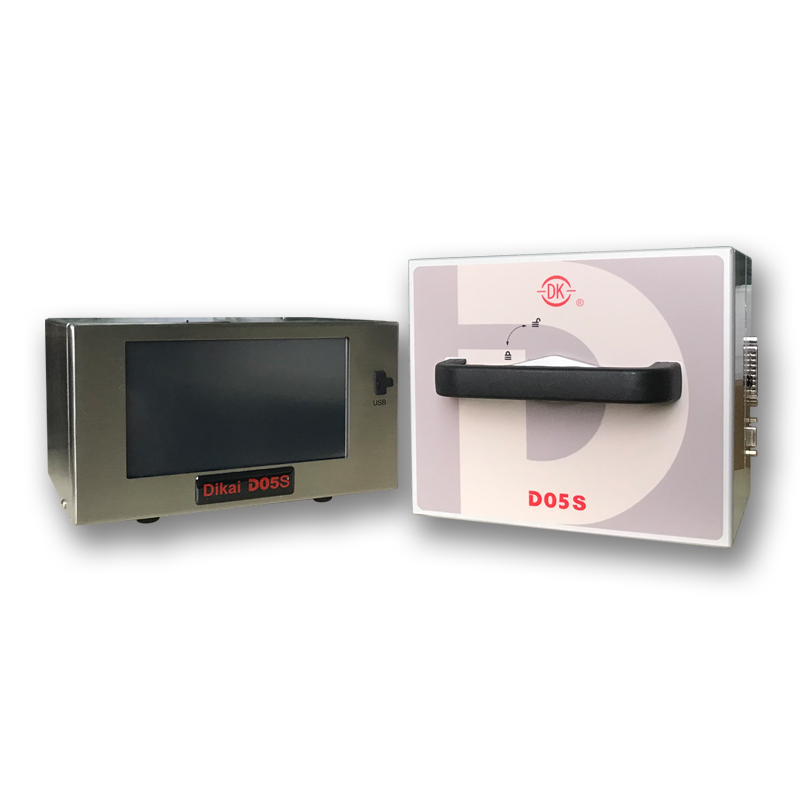

DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 0
The D05S Thermal Transfer Overprinter with 53mm printhead is one of the most cost-effective smart coding machines available. It enables manufacturers to manage and utilize production data for identification, verification, product promotion, and logistic tracing. These solutions are widely applied across multiple industries including food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, and wood industry.
Available in two configurations: Right hand machine and Left hand machine.
Key Features
  • Continuous & Intermittent printing modes
  • 53mm Kyocera Printhead with 300 DPI resolution
  • Real-time and variable data printing capability
  • Low operational cost
  • User-friendly operation
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 1 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 2

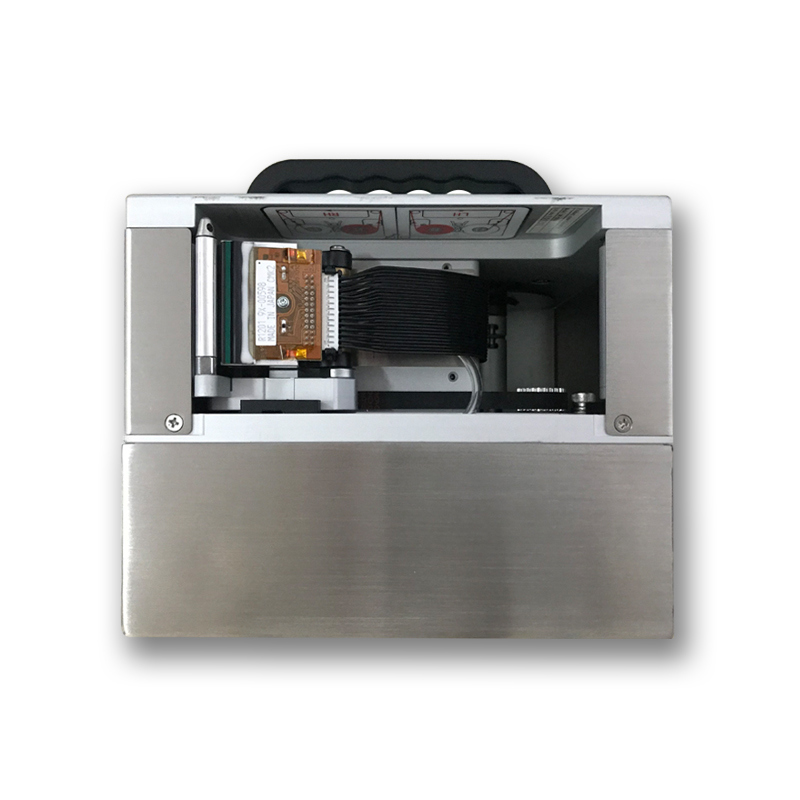

53mm Printhead
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 3

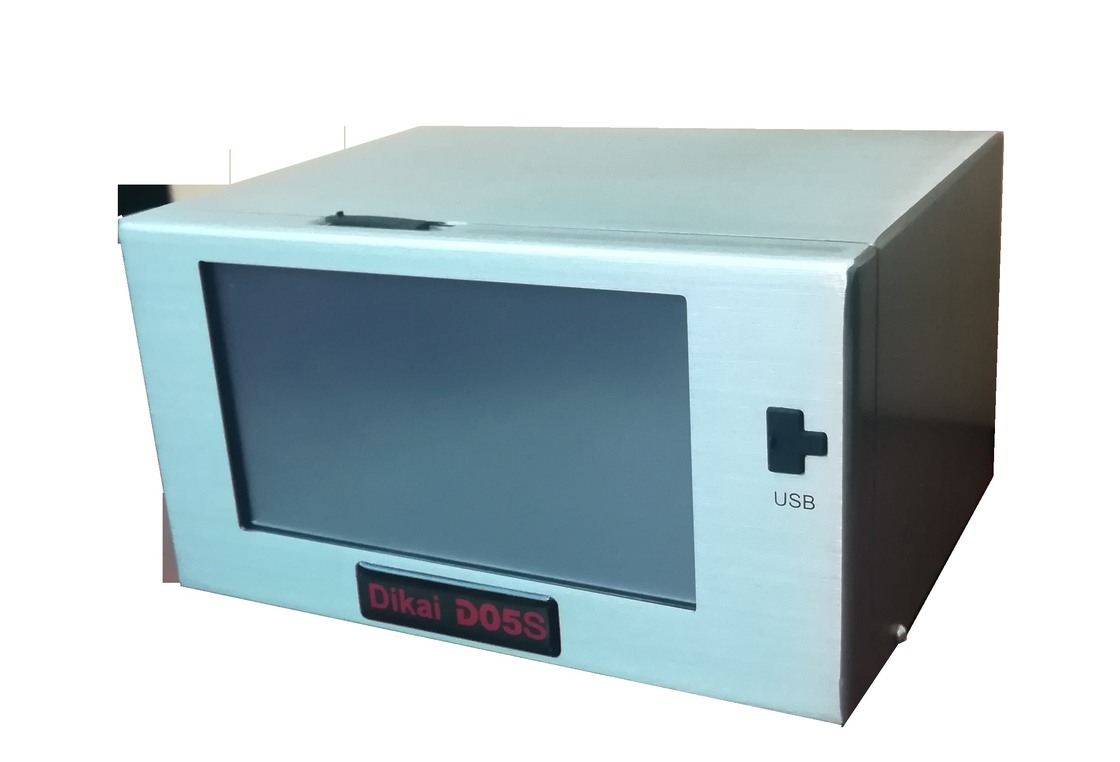

Interface
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 4
Technical Specifications
Print Head 53mm, Kyocera; 300DPI
Print Area Intermittent: 53mm*70mm
Continuous: 53mm*150mm
Ribbon Size 55mm*600m
Print Frequency Intermittent: up to 300PPM
Continuous: up to 30PPM
Power 150W
Operation Temperature 0-40℃
Relative Humidity 10%~95% (non-condensing)
Air Supply 6bar/90PSI (MAX) dry, Clean
Weight Print head: 8.5kg
Control box: 2.0kg
Dimensions (L*W*H) Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm
Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions tailored to your requirements.
Packaging & Shipping
  • Standard export cartons with protective sponge interior
  • Suitable for sea, air, or courier shipping
  • Customized packing available per customer requirements
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 5 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 6
After Sales Service
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 7
Technical Support
  • R&D support
  • Operation manual guidance
  • 24-hour professional online support
  • Video support resources
  • Possible onsite support
Frequently Asked Questions
1. Why choose Dikai?
With 25 years of experience in development, manufacturing, and sales of quality coding machines and consumables, we are committed to satisfying every customer's unique needs in coding and marking applications.
2. What's the regular lead time for Dikai products?
Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.
3. What's the warranty for Dikai products?
Standard warranty is 12 months from date of leaving Dikai warehouse.
4. How about your after-sales service?
In countries with distributors, we rely on local partners for service. Dikai also provides online technical support and continuously upgraded video resources.
About Shanghai Dikai Coding Industry Co., Ltd
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 8
Founded in 1995, Shanghai Dikai Coding Industry Co., Ltd is a comprehensive coding solutions provider specializing in R&D, innovation, manufacturing, sales, and service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, and Ribbon products.
Headquartered in Shanghai, China, we operate 16 branch offices and numerous authorized distributors domestically, serving over 4,000 end users and more than 200 packaging machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.
DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 9 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 10 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 11
Manufacturing Facilities
Production Standards: 5S management, strict quality control, clear operating instructions, and regular worker training.
TTO Workshop
Production capacity: Over 1,000 units per month
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 12
Ink Roll Coder Workshop
Production capacity: Over 1,500 units per month
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 13
Laser Workshop
Production capacity: Over 80 units per month
Certifications
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 14 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 15
Exhibitions
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 16 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 17 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 18
Open Cooperation
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding 19
