DIKAI D05S Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 1 Year Warranty

Informazioni di base

Luogo di origine:	Shanghai, Cina
Marca:	DIKAI
Certificazione:	CE, ROHS, MSDS

Quantità di ordine minimo:	1
Prezzo:	$3,200-3,500

Miglior prezzo Contattaci

Larghezza della testa di stampa:	53 mm	Tipo di testa di stampa:	Kyocera 300dpi
Max Print Area:	53mm*150mm	Velocità di stampa:	2-36 m/minuto
Dimensione dell'unità di stampa:	210mm210mm180mm	Dimensione della scatola del controller:	233mm180mm128mm
Interfaccia:	USB; RS232	Alimentazione elettrica:	AC100-240V 50/60Hz
Fornitura d'aria:	6bar/90psi (max.)	Peso:	16 kg
Dimensione del nastro:	55mm*600m	Frequenza di stampa:	300ppm (intermittente), 30ppm (continuo)
Consumo energetico:	150 W.	Temperatura operativa:	0-40 ℃
Umidità relativa:	10% ~ 95% (non condensante)
Evidenziare:	AC100-240V Thermal Transfer Overprinter , 6bar Air Supply TTO Printer , 1 Year Warranty Coding Machine

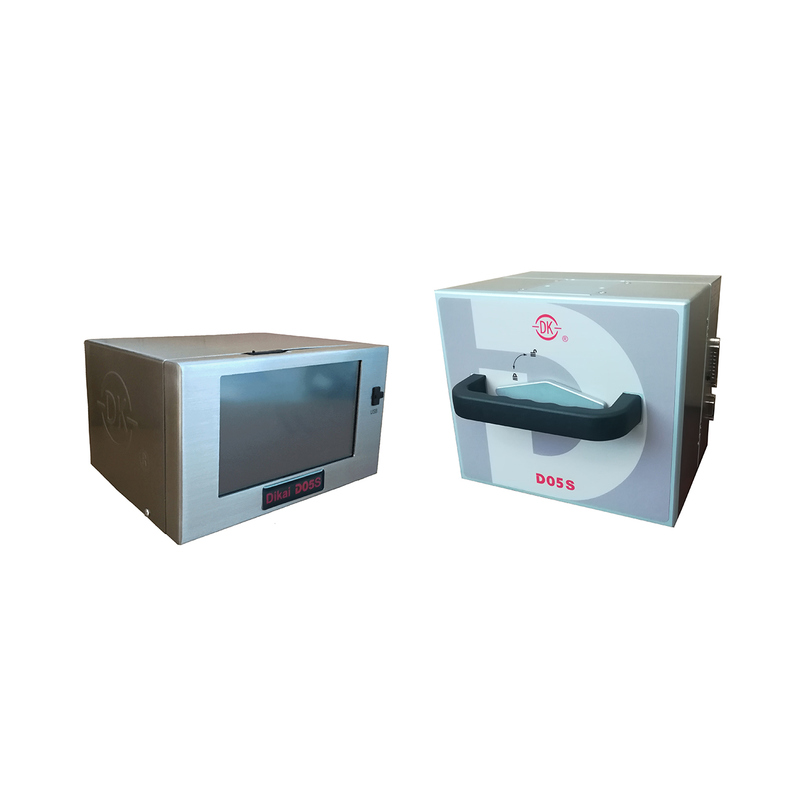

DIKAI D05S Thermal Transfer Overprinter

Product Overview

The DIKAI D05S is a cost-effective thermal transfer overprinter with a 53mm printhead, designed for industrial identification, verification, product promotion, and logistic tracing applications. This versatile solution serves industries including food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, wood industry, and more.

Available in two configurations: Right hand machine and Left hand machine.

Key Features

Continuous & Intermittent printing modes
53mm Kyocera Printhead with 300 DPI resolution
Real-time variable data printing capability
Low operational cost
User-friendly operation

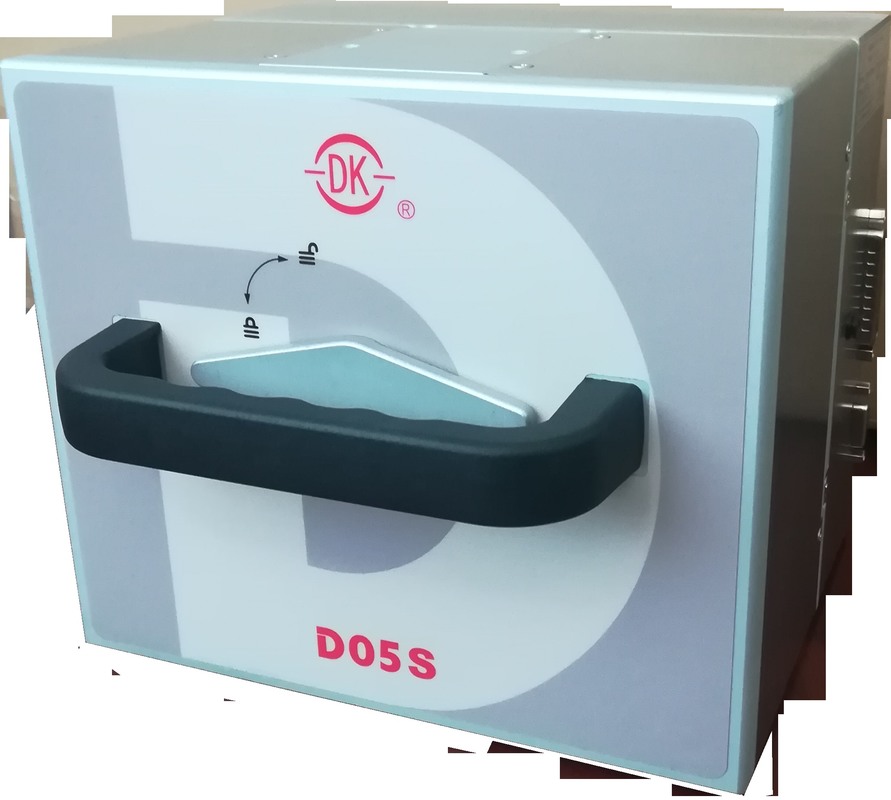

Print Unit

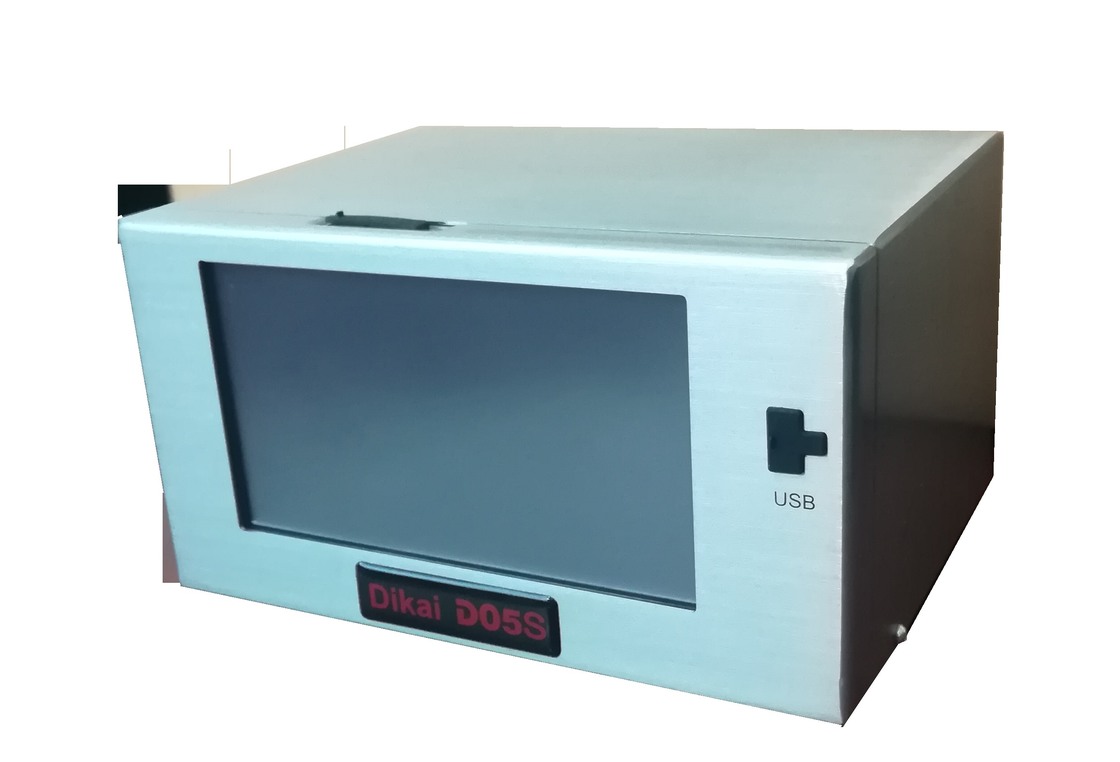

Control Box

Technical Specifications

Specification	Details
Print Head	53mm, Kyocera; 300DPI
Print Area	Intermittent: 53mm70mm Continuous: 53mm150mm
Ribbon Size	55mm*600m
Print Frequency	Intermittent: up to 300PPM Continuous: up to 30PPM
Power	150W
Environmental Operation Temperature	0-40℃
Relative Humidity	10%~95%(non-condensing)
Air Supply	6bar/90PSI(MAX) dry, Clean
Weight	Print head: 8.5kg, Control box: 2.0kg
Dimensions (LWH)	Print Unit: 210mm210mm185mm Controller box: 233mm180mm128mm

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions for your needs.

Packaging & Shipping

Standard wooden cases with protective sponge filling
Fumigation-free wooden cases suitable for sea and air transport
Customized packing available upon customer request

After Sales Service

R&D support
Operation manual guidance
24-hour professional online support
Video support
Possible onsite support
